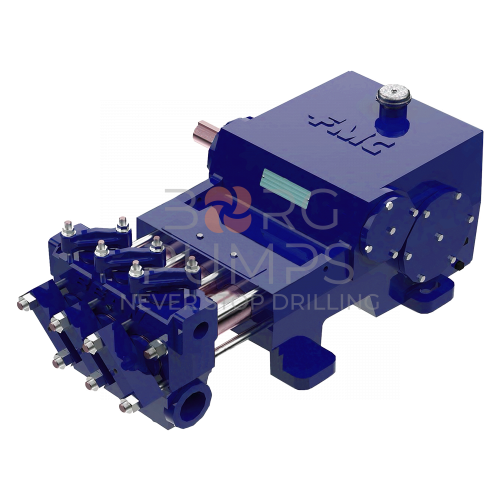

Pump Type - piston
Rated pressure - 1650 psi (113 bar)
Continuous duty capacity - 57.6 GPM, 1100 RPM.
intermittent duty capacity - 76 GPM, 1450 RPM.
Gallons per revolution - 0.0524
Seal diametr - 2.25 in
Number of Cylinders - 3
Stroke Length - 3.5 in
Weight - 705 lbs
Length - 38.5 in
Width - 18 in
Height - 15.5 in
Mechanical Efficicency - 85%
Ductile Iron - yes
Aluminum Bronze - yes
Stainless Steel - no
HP Carbon Steel - yes
HP Stainless Steel - yes
API Carbon Steel - no
API Stainless Steel - no
Pump Selection Procedure
Determine your HP requirement using the following equation:
HP=GPM*PSI/1714*Mechanical Efficiency
For preliminary sizing, use 85% for the mechanical efficiency, then adjust based on actual efficiency of pump selected.
Determine the speed at which the pump will need to operate to produce the desired flow.
RPM = Desired Flow (GPM) / Displacement
Notes:
1. Ratings are based on nominal speeds and pressures and may vary on FMC written approval.
2. Capacities and speeds indicated are based on 100% volumetric efficiency.
3. Intermittent duty is defined as 0-8 operational hours per day. Any service that falls outside of this range should use continuous duty ratings.
4. Dimensions are approximate and
based on standard pump models with
cast fluid cylinders. Width is measured
parallel to the axis of the drive shaft
and does not include the shaft
extension.
