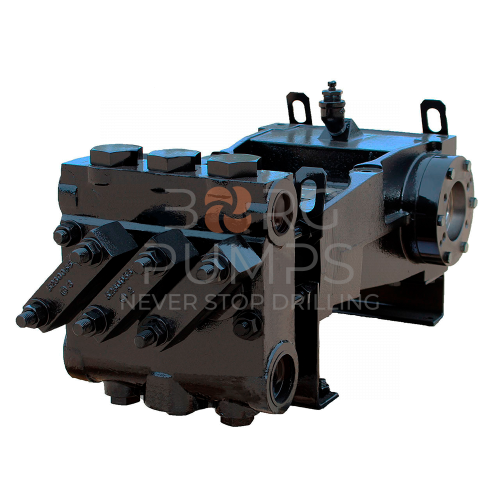

Pump FMC L1118 SC (300L/min, 70 Bar) (P101101)

<p> The piston pump FMC L1118 is designed for all types drilling: HDD drilling, Vertical Drilling, Water Well, Cleaning,

<h2> Benefits pump FMC L1118 SC (300L/min, 70 Bar) (P101101)

<p>

<ul>

<li>Three-piston flushing pump </li>

<li>Designed for pumping drilling mud and water, and is used in horizontal, core and vertical drilling, as well as in water drilling</li>

<li>Stainless steel cylinders with a ceramic insert</li>

<li>Pistons are made of Kevlar material</li>

<li>Stainless steel disc valves designed for abrasive environments</li>

<li>The pump cylinder diameter is 2.25 inches (57.15 mm), it is possible to install cylinders from the 1122 modification-2.75 inches (69.85 mm)</li>

</ul>

<h3>area of application

<p>text

<h2> specifications

Configuration Horizontal Triplex Piston

Number of Pistons 3

Stroke Length 2.75 Inches (6.985 cm)

Frame Load Rating 6,000 lbs (2,721.6 kg)

Pump Weight (Average) 460 lbs (208.7 kg)

Direction of Rotation Top of pinion shaft away from head

Internal Gear Ratio 3.6:1

Intermittent Duty Speed Rating 1,275 RPM

Continuous Duty Speed Rating 900 RPM

Ball Valve Max Speed Rating 1050 RPM

Minimum Speed * 360 RPM

Mechanical Efficiency 85%

Lubrication System (Standard) Splash, Gravity Return

Lube Oil Capacity 1 Gallon (3.78 Liters)

Lube Oil Type SAE 30

Maximum Fluid Temperature 140 °F (250 °F Capability)

60°C (121°C Capacity)

Minimum Fluid Temperature 0 °F (-20 °F Capability)

-17.8°C (-28.9°C Capacity)

Standard Suction Size 2.50 Inch NPT

Standard Discharge Size 1.25 Inch NPT

Fluid End Material Ductile Iron, Nickel Aluminum

Bronze

Valve Types Disc Valves, Ball Valves, Abrasion

Resistant (AR) Valves

Hydraulic Motor Mount SAE C - 2 Bolt with 1.25”-14T

SAE C - 4 Bolt with 1.25”-14T
