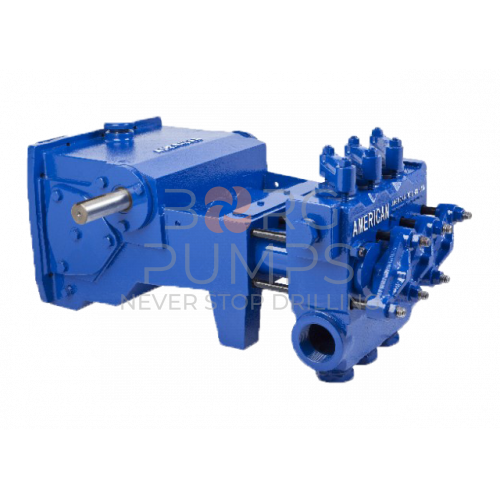

The American Mfg AL1118B flushing three-piston pump is designed for pumping drilling mud and water, used in horizontal directional, core and vertical drilling, as well as in water drilling. The maximum pump capacity is 190 l / min, and the maximum pressure with disc valves is 103 bar. The pump cylinders are made of stainless steel with a ceramic insert, which significantly increases reliability and increases the service interval. The mud pump pistons are made of Kevlar material and are designed for abrasive environments, and we also offer pistons made of high-strength rubber for other applications. The pump is equipped with stainless steel disc valves designed for abrasive environments. The pump cylinder diameter is 2.25 inches (57.15 mm), it is possible to install cylinders from the 1122 modification-2.75 inches (69.85 mm) to change the pump pressure and fluid supply parameters.
Specifications
Abmessungen und Gewicht
